ObstaDiff: Generalizable Diffusion Policy Learning via Obstacle-aware Representations

Wang, Jiawen; Yao, Kevin; Jawed, Khalid

ObstaDiff: Generalizable Diffusion Policy Learning via Obstacle-aware Representations

Jiawen Wang¹, Kevin Yao², Khalid Jawed^1,*

¹Department of Mechanical and Aerospace Engineering, UCLA ²Department of Computer Science, UCLA Conference on Robot Learning (CoRL) 2026, Austin, TX
^*Corresponding author: khalidjm@seas.ucla.edu

Paper Code arXiv

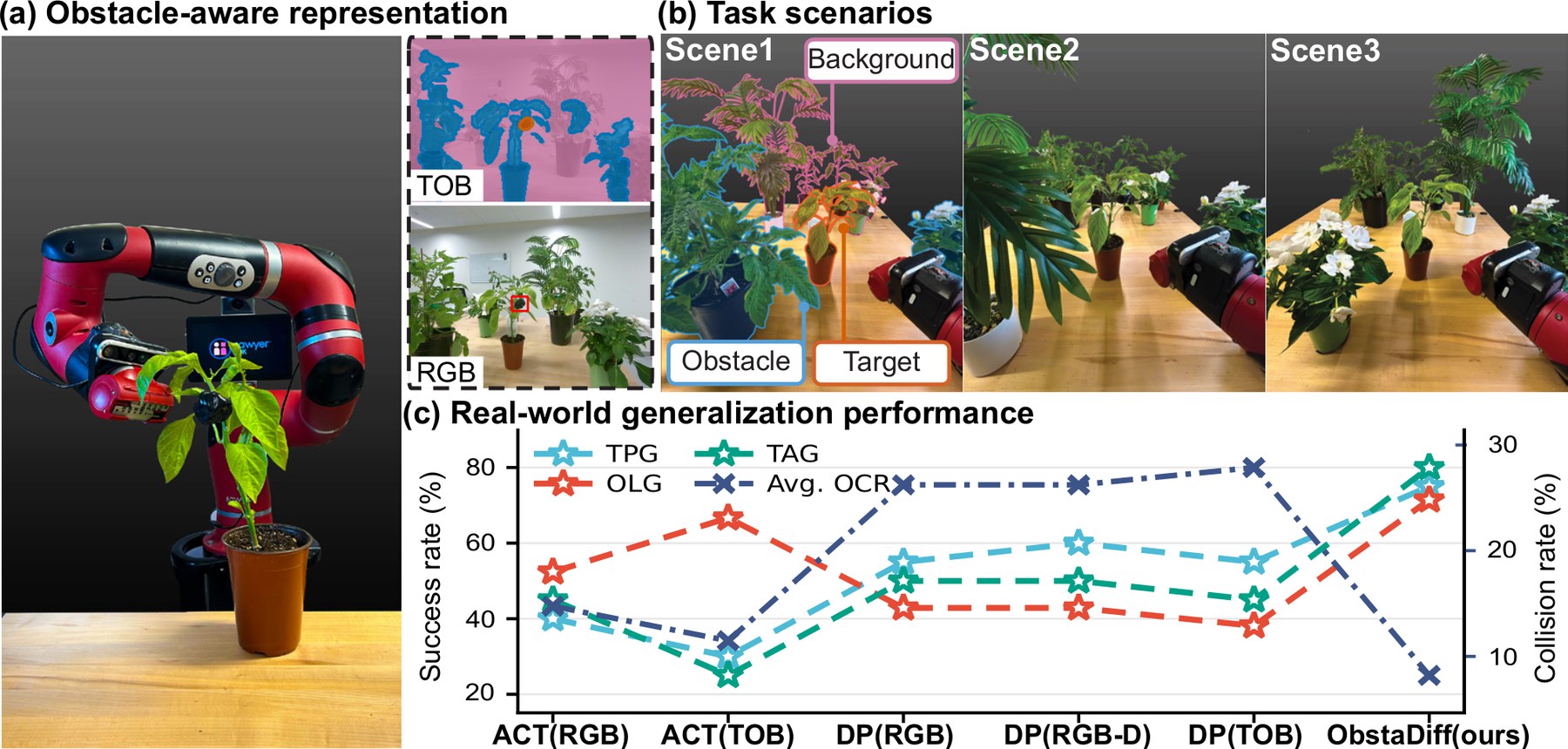

ObstaDiff overview: (a) the obstacle-aware TOB representation next to the RGB view, (b) three greenhouse task scenarios with target, obstacle and background labels, (c) success and collision rates across methods

ObstaDiff learns a structured target–obstacle–background (TOB) representation for imitation learning in cluttered scenes. It produces obstacle-aware approach motions, improving generalization across target-pose, obstacle-layout, and target-appearance settings while reducing the average obstacle collision rate (c).

Abstract

Imitation learning has achieved impressive results in robotic manipulation, yet most existing approaches assume clean backgrounds and lack explicit mechanisms for obstacle-aware motion generation. Extending such policies to cluttered, real-world scenes with unstructured obstacles remains a key generalization challenge. We present ObstaDiff, a decomposed diffusion-policy framework with a lightweight obstacle-aware visual encoder. ObstaDiff extracts a structured target–obstacle–background representation, enabling the downstream alignment policy to generate end-effector trajectories toward a target-centered bottleneck pose while reasoning about surrounding obstacles. We evaluate ObstaDiff on 61 real-robot greenhouse trials per method (366 executions in total). ObstaDiff achieves 75.41% average task success and 8.20% average obstacle collision rate, outperforming representative imitation-learning baselines and improving generalization in cluttered agricultural scenes.

Method

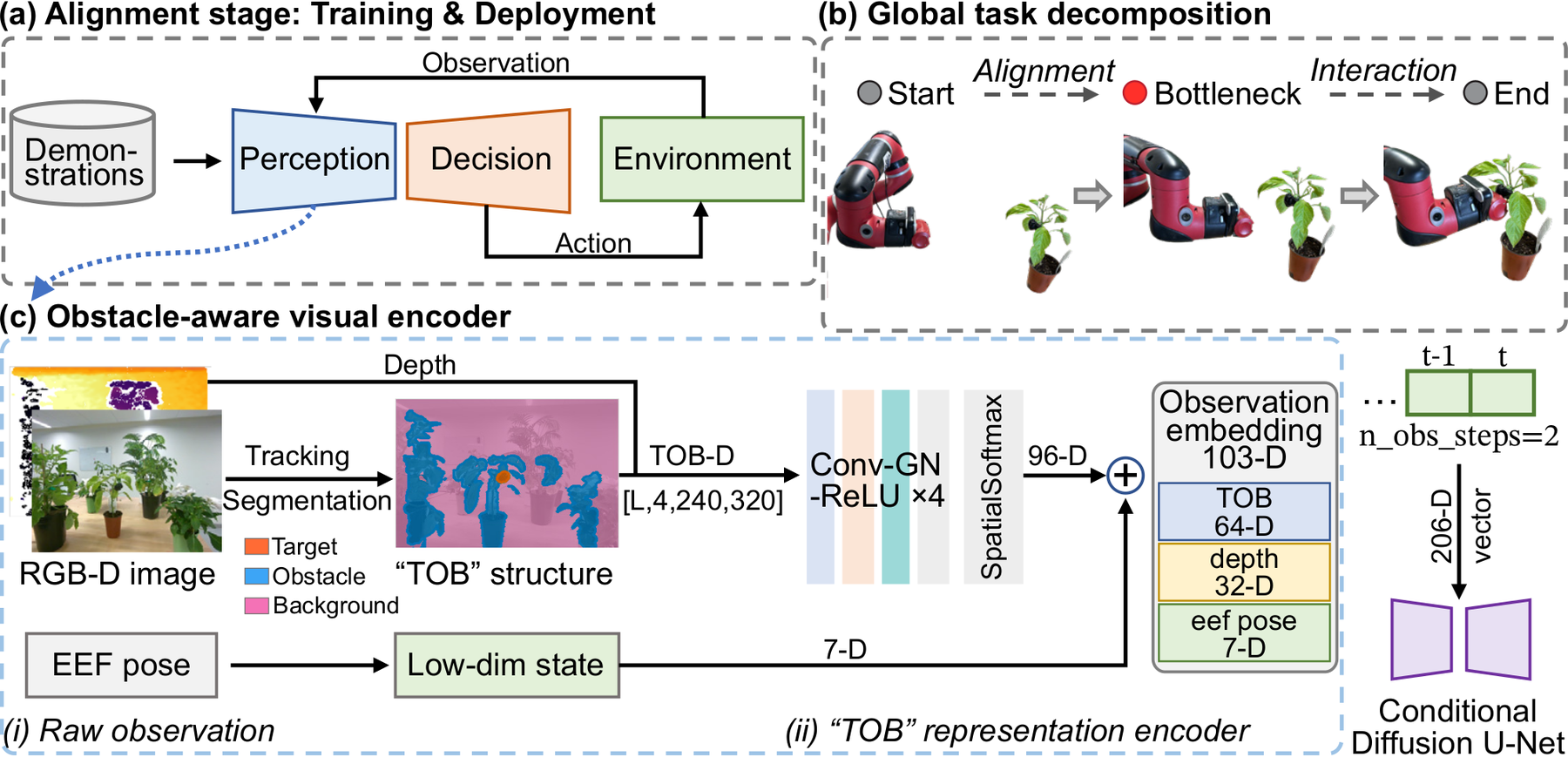

ObstaDiff framework: (a) alignment-stage training and deployment loop, (b) task decomposition into alignment and interaction around a bottleneck pose, (c) obstacle-aware visual encoder producing a 103-D observation embedding for a conditional diffusion U-Net

Eye-in-hand RGB-D observations are converted into a structured TOB representation and encoded with robot state into a 103-D conditioning vector for a diffusion policy. The policy performs obstacle-aware alignment to a target-centered bottleneck pose, after which replayed actions execute close-range interaction.

Target–obstacle–background observation

A fine-tuned YOLOv8s-Worldv2 open-vocabulary detector marks target and obstacle regions in each eye-in-hand frame; everything else is background. The three binary masks are stacked with the aligned, normalized depth image, exposing exactly the scene semantics that matter for obstacle-aware alignment.

Structured observation encoder

Instead of a generic image backbone, a lightweight encoder keeps semantic masks and depth in separate branches with spatial softmax, producing a 64-D TOB feature and a 32-D depth feature that are combined with the 7-D end-effector pose into a 103-D embedding per observation step.

Bottleneck switching and replay

The diffusion policy only learns alignment. A data-driven criterion picks the closest replay in an interaction library and switches once the live target matches it, then replays that interaction relative to the bottleneck. Changing the library changes the task without retraining.

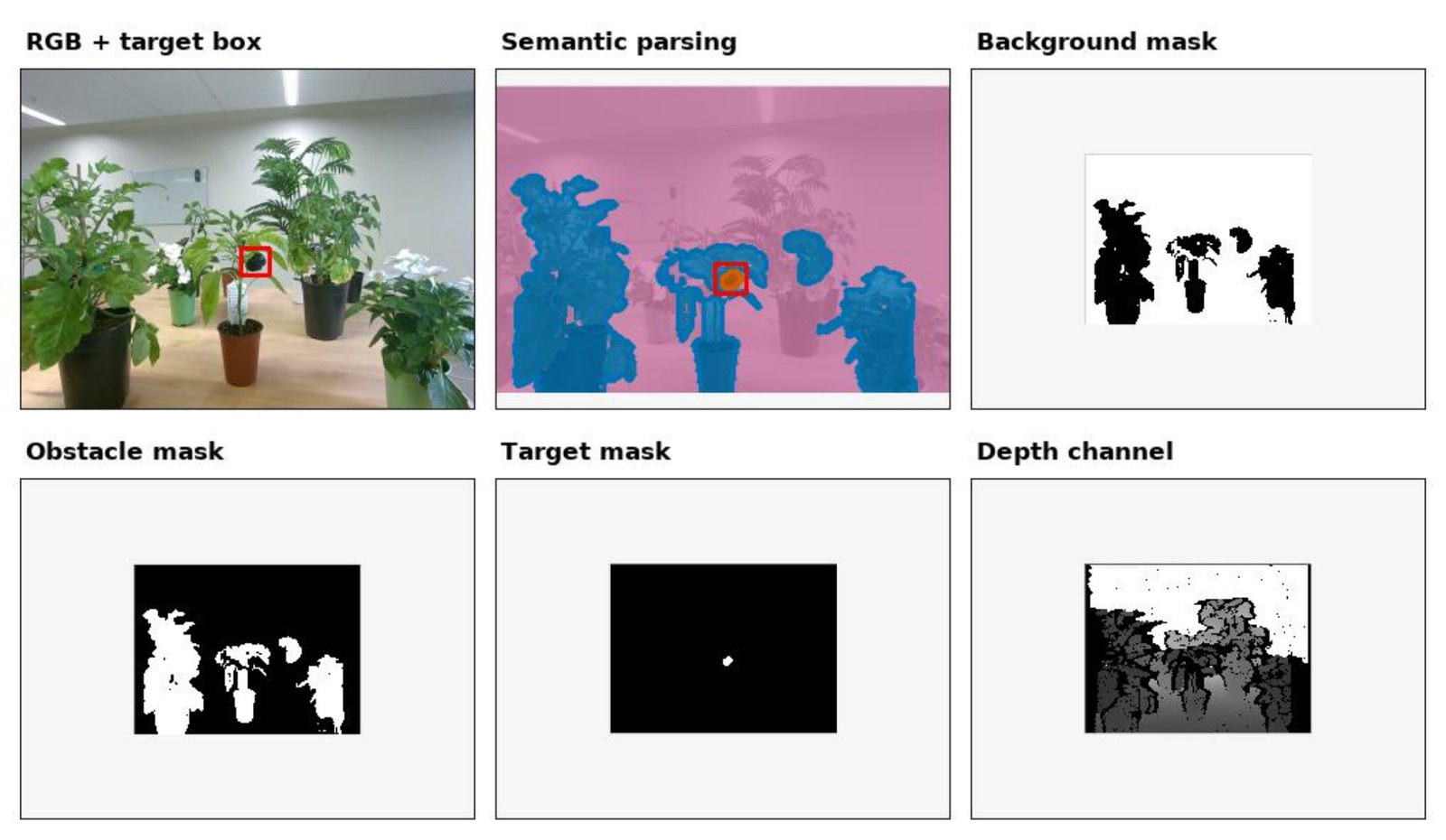

TOB preprocessing: raw RGB with target box, semantic parsing, background mask, obstacle mask, target mask and normalized depth

TOB preprocessing. Raw RGB with target box, semantic parsing, background, obstacle, and target masks, and normalized depth. The policy input stacks the three masks with depth.

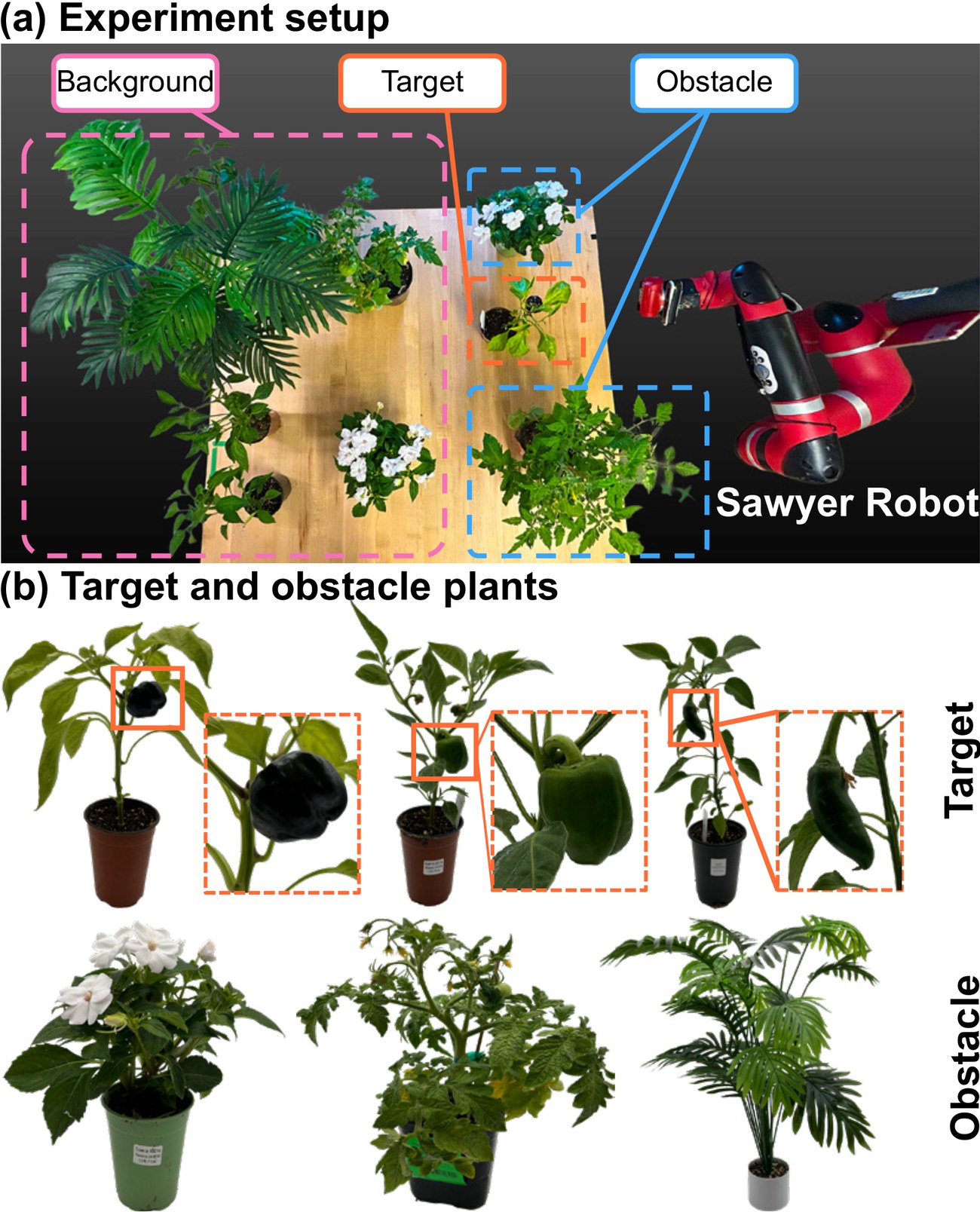

Experimental setup: indoor greenhouse testbed with a Sawyer robot, and the target pepper and obstacle plants used

Experimental setup. (a) Indoor greenhouse testbed with a Sawyer robot, target pepper, background plants, and obstacle plants. (b) Target pepper plants and obstacle plants used in the experiments.

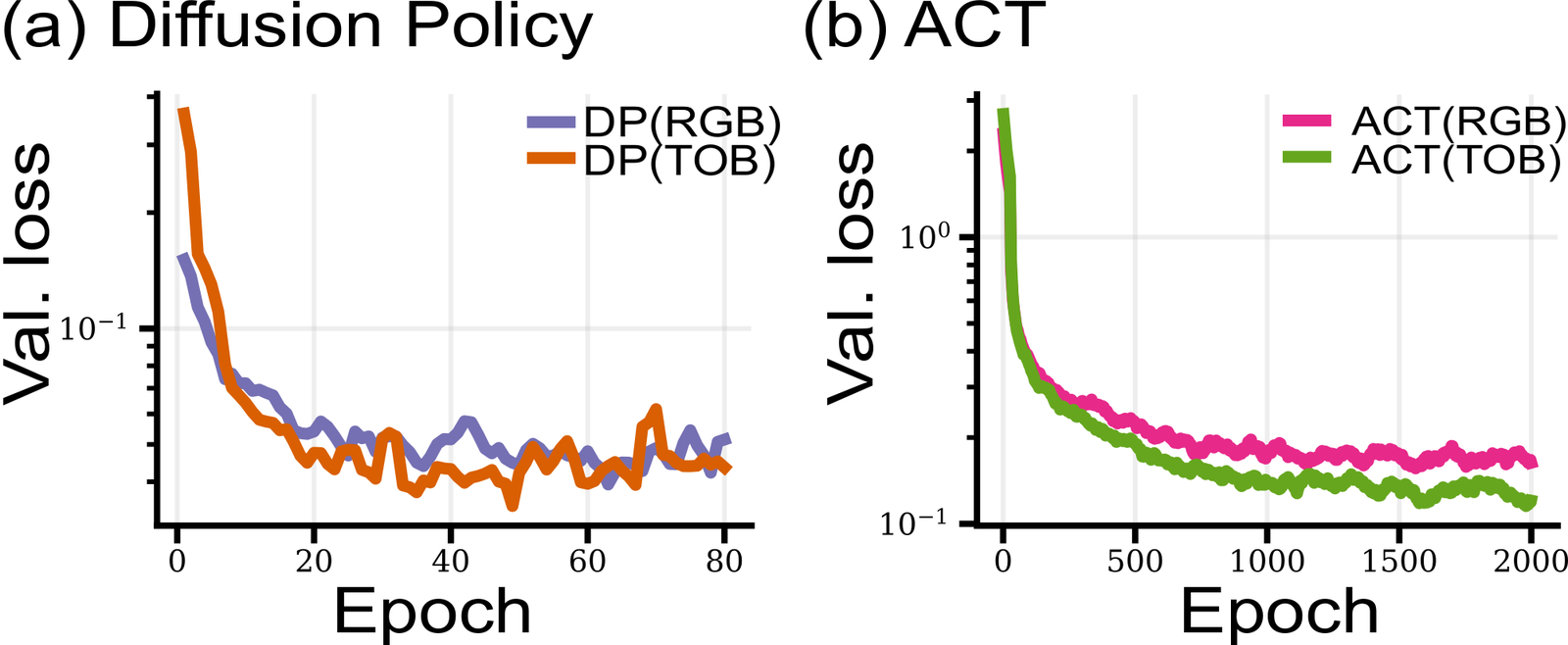

Validation loss curves showing TOB inputs reduce validation loss

TOB stabilizes training. TOB reduces validation loss, but the ACT (TOB) real-robot results show that lower supervised loss alone does not guarantee higher task success.

Real-Robot Results

Each method runs the same 61 trials on a 7-DoF Sawyer with an eye-in-hand RealSense D455: TPG (target-pose generalization, 20 trials), OLG (obstacle-layout generalization, 21 trials), and TAG (target-appearance generalization with two unseen green pepper varieties, 20 trials), 366 real-robot executions in total.

Method	TSR (%) ↑				OCR (%) ↓				TCT (s) ↓	Smooth (10⁻⁴) ↓
Method	TPG	OLG	TAG	Mean	TPG	OLG	TAG	Mean	TCT (s) ↓	Smooth (10⁻⁴) ↓
ACT (RGB)	40.00	52.38	45.00	45.90	25.00	14.29	5.00	14.75	20.77	1.16
ACT (TOB)	30.00	66.67	25.00	40.98	15.00	14.29	5.00	11.48	18.38	0.77
DP (RGB)	55.00	42.86	50.00	49.18	35.00	33.33	10.00	26.23	18.41	1.35
DP (RGB-D)	60.00	42.86	50.00	50.82	35.00	33.33	10.00	26.23	18.67	1.34
DP (TOB)	55.00	38.10	45.00	45.90	30.00	38.10	15.00	27.87	18.17	1.19
ObstaDiff (ours)	75.00	71.43	80.00	75.41	5.00	19.05	0.00	8.20	15.57	1.13

TSR: task success rate. OCR: obstacle collision rate. Means are over the 61 pooled trials. TCT (task completion time) and trajectory smoothness are computed over successful TPG trials. Best results in bold.
